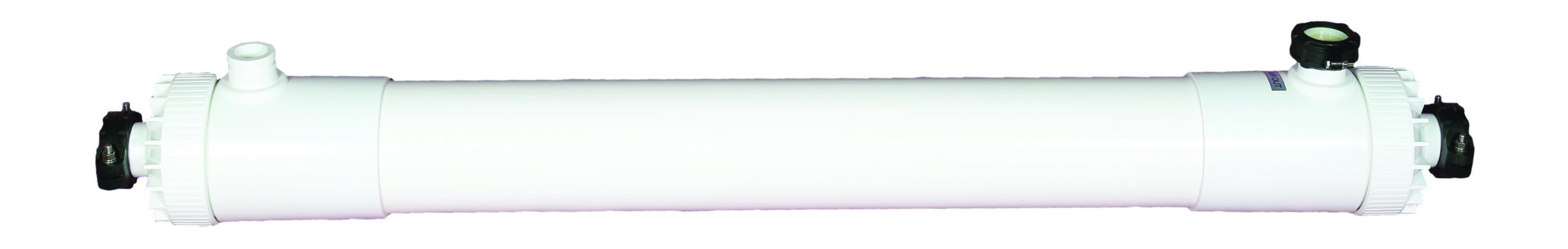

HFUG-2020AN Toray Ultrafiltration Module


SKU: HFUG-2020AN Category:


The HFUG-2020AN module is Toray’s latest UF innovation that features hollow fibers with a smaller diameter but with improved membrane durability and performance. The result is an increased surface area per module for more production output.

High Cost-Performance PVDF Hollow Fiber Membrane Products Long Membrane Life with High Filtration Flux

High Chemical Resistance & High Mechanical Strength & Low Fouling Property

TORAY’s special spinning method with PVDF (polyvinylidene fluoride) enables high mechanical and chemical strength without fiber breakage. TORAY’s unique membrane structure and Outside-to-Inside flow direction enable higher flux operation for a long period.

Recommended Couplings for Module Connections

Piedmont’s Style J Couplings

Piedmont’s 3″ Style P Composite Coupling – Corrosion Resistant

Piedmont’s 3″ Style K Coupling – Stainless Steel for Higher Pressure Option

Safe Water Provided

Pressured HFU series and Submerged HSU series are certified for drinking water production.

  • ANSI/NSF 61
  • CDPH (California Department of Public Health)
  • AMST (Association of Membrane Separation Technology of Japan)
  • KWWA (Korean Water and Wastewater Works Association)

Large Amount of Filtration Flow

TORAY’s large module produces 60 – 200 m3 per day and enables cost savings for your water treatment plants.

Toray HFUG-2020AN UF Membrane Specifications

TORAYFIL Hollow Fiber UF Brochure

Additional information

Weight 145 lbs
Dimensions 91 × 16 × 12 in
