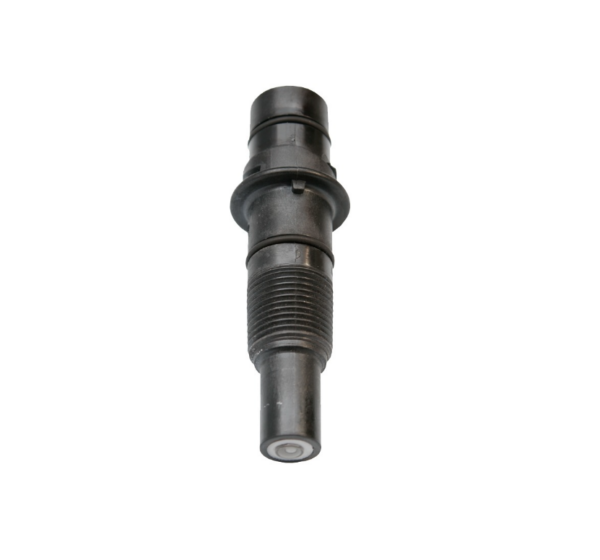

Signet 3-2725-60 ORP Electrode, Flat Tip, PT1000 Temperature compensation

$386.85

SKU: 5926.4561 Category:

Description

GF Signet 3-2725-60 ORP Electrode, Flat Tip, PT1000 Temperature compensation

– Patented reference design enhances performance
– Compatible with Signet fittings from 1/2″ to 4″
– Features non-threaded 3/4″ sensors for versatile installation
– Installable at any angle, including inverted or horizontal positions
– Ryton (PPS) sensor body ensures compatibility with various chemicals
– Equipped with DryLoc connector and gold-plated contacts for reliable connection
– Fast temperature response time
– Suitable for trace HF applications (less than 2% concentration) with HF resistant glass
– Effective in low conductivity liquids (down to 20 uS/cm)

Ideal For:
– Water treatment and monitoring
– Cooling systems protection
– Neutralization systems management
– Sanitization processes
– Pool and spa control
– Aquatic life support systems

Alternate Part Number: 3-2726-00

Blind Signal In-Line Installation: Recommended Integral Mount installation with the Signet 3-2751-1 In-line Smart Sensor Electronics

Integral Calibration In-Line Installation: Recommended Integral Mount installation with the Signet 3-2751-2 In-line Smart Sensor Electronics

Electrode Care

Depending on the type of application and the accuracy needed, pH and ORP electrodes will require routine maintenance. Contaminated/dirty electrodes should be swapped with properly cleaned conditioned and calibrated electrodes. The solution used to clean an electrode varies depending on the type of coating: Caution: Always wear appropriate safety gear and exercise proper safety practices when working with or near chemicals • General Cleaning – Soak the electrode for 5 minutes in a mixture of warm tap water (< 140° F), and mild detergent such as liquid dish detergent. A soft brush, like a toothbrush may also be used to clean off particulates. • Biofilm and bacterial growth – Soak the electrode in a diluted household laundry bleach solution (pH electrodes only), 1part bleach to 10 parts water for 10 minutes. • Alkaline or Scale – Lime/calcium and mineral buildup deposits may be removed by soaking the electrode in a solution of 2% to 5%hydrochloric acid (HCl) or vinegar for no more than 5 minutes. • Acidic contaminants – May be removed by soaking the electrode in a weak caustic (less than 2% to 5% NaOH) for a few minutes only. Use the least harsh chemical which will remove the contaminant within 2-5 minutes of soaking without attacking the materials of construction. • Oily or organic coatings – Soak the probe for 5 to 10 minutes in a solution of warm tap water < 140° F, and dish detergent. Alternatively, use an appropriate solvent (isopropyl alcohol or similar) that will not attack the materials of construction. If required gently clean junction and/or glass with a very soft tooth brush, and follow up with brief soaking (2-5 minutes) in 2% to 5%NaOH(sodium hydroxide). In the case of pH (not ORP) a difficult organic fouling can be treated with household bleach (46%) as a substitute for the dish detergent. • ORP Platinum Coating – Gently wipe the electrode surface with a soft lint-free paper towel. If the various forms of chemical cleaning are not sufficient to achieve an accurate measurement and response time, a last resort would be to polish the platinum surface with a 0.3-1.0 micron alumina polishing slurry to remove any stubborn coatings. • After cleaning, rinse pH/ORP electrode in distilled or tap water, then re-examine the electrode for damage that may have been hidden from view. Sensor may not initially behave properly; and have a temporary offset due to the cleaning chemistry. Proper conditioning is always recommended.

GF Signet 3-2724-01 Flat pH electrode Datasheet

GF Signet 3-2724-01 Flat pH electrode Manual

Additional information

Weight 1.75 lbs
Dimensions 10 × 4 × 4 in
Manufacturers Part No.

3-2725-60

Code

159 001 561

Connection Type

Male pipe thread

Max Pressure (PSI)

100 psi

Piping Connection Size

3/4"
