Paddle Wheel Flow Sensor – Signet 2537, 1/2″-4″ Pipe Diameter, 4-20 mA Output

$555.00

SKU: 59301.296 Category:

Description

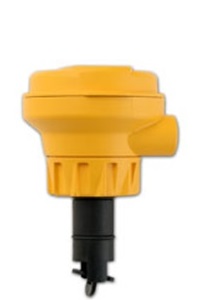

GF+ Signet 3-2537-6C-P0 Rotor-X Paddlewheel Flow Sensor

Features

DN15 to DN200 (0.5 to 8in) pipe sizes

  • Low flow capabilities down to 0.3ft/s (0.1m/s)
  • Output options
    • Digital (S³L)
    • 4-20mA
    • Pulse divider / flow switch, dry contact relay
    • Pulse divider / flow switch, solid state relay
  • Polypropylene or PVDF wetted materials
  • Built-in user interface for on-site configuration
  • Low power and high resolution
  • Allows for up to six sensors to Signet 8900 controller
  • CE, FCC, and UL approvals
  • The GF Signet 2537 paddlewheel flow meter is the next generation in fluid measurement technology from the inventor of the original paddlewheel flow meter. The 2537 Flow Meter is an improvement on what’s already an industry standard. It has the added functionality of various output options including flow switch, multi-functional pulse divider, digital (S³L), or 4 to 20mA. Additionally, the GF Signet 2537 paddlewheel flow meter offers low flow, low power, and high resolution and can be configured onsite directly through the built-in user interface.Installation is simple because the GF Signet 2537 paddlewheel flow meter utilizes the same fittings as the popular GF Signet 515 and 2536 paddlewheel sensors and fits into pipe sizes ranging from DN15 to DN200 (0.5 to 8 inches). Available in Polypropylene and PVDF, the GF Signet 2537 paddlewheel flow meter is ideal for a variety of applications including chemical processing, water, and wastewater monitoring scrubber control.
  • GF Signet 2537 Paddlewheel Flow Meter Applications:

  • Process flow monitoring
  • Pump protection
  • Pure water production
  • Filtration systems
  • Chemical production
  • Reverse osmosis
  • Demineralization / regeneration
  • Fume scrubbers
  • Cooling towers
  • Proportional metering pump

GF+ Signet 3-2537-6C-P0 Rotor-X Paddlewheel Flow Sensor Datasheet

GF+ Signet 3-2537-6C-P0 Rotor-X Paddlewheel Flow Sensor User’s Manual

GF+ Signet 3-2537-6C-P0 Rotor-X Paddlewheel Flow Sensor .STP | CAD File

Restriction of Hazardous Substances Directive



Additional information

Body

Polypropylene

Pin Material

Titanium

Pipe Size

.5"-4"

Manufacturer Part No.

159 001 296
