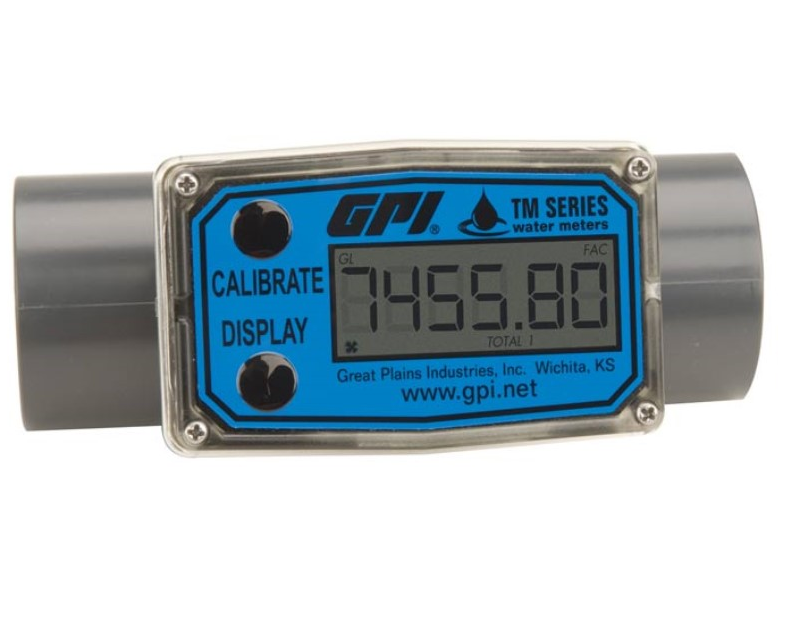

GPI FLOMEC 10 – 100 GPM Inline PVC Turbine flow meter – 1.5″ Spigot Connection

$480.00

SKU: 58850.415 Category:

Description

Introducing the Great Plains Industries TM Series Flow Meter – the ideal solution for accurate and reliable flow measurement in a variety of water-centric applications. Engineered with precision and innovation, this water meter is designed to meet your specific needs.

Key Specifications:

  • Meter Body Size: 1.5″
  • Body Type: Sch 80
  • Local/Remote Display: Local
  • Display Type: Digital LCD
  • Factory Calibrated For: Water-like fluids
  • Flow Meter Type: TM Series – WATER METER
  • Warranty Period: 1 Year
  • Product Type: Rate & Totals

Benefits & Features:

  • 5-Year Battery Powered: Enjoy long-lasting performance and reliability.
  • 6 Digit Display – Floating Decimal: Accurately track your flow measurements with a clear and easy-to-read display.
  • Rate of Flow: Monitor real-time flow rates for precise control.
  • Batch & Cumulative Totals: Keep a comprehensive record of your water consumption.
  • Factory Calibrated and Field Calibratable: Ensure accuracy tailored to your specific requirements.
  • Choice of Gallons or Liters: Customize your measurements to suit your preferences.
  • Custom Programmable Display (including UOM): Adapt the display settings to meet your unique needs.

Applications: This flow meter is versatile and suitable for a range of applications, including:

  • Waste Water
  • Water Treatment
  • Sub-Metering
  • Water-Based Cooling Systems

Application Notes:

  • Unidirectional but Display can be rotated 180°: Conveniently orient the display for optimal visibility.
  • Can mount Horizontally or Vertically: Flexibility in installation options.
  • Can use for Gravity Feeds: Adaptable to different system configurations.
  • Accuracy can be improved with field calibration: Tailor the accuracy to your specific needs.
  • Line must be full (no air) for proper accuracy: Ensure accurate measurements by maintaining a full line.
  • Do not allow fluid to freeze inside meter: Protect your equipment from potential damage due to freezing.

Piping Notes:

  • Not recommended to connect to metal piping: Optimal performance is achieved with non-metallic piping.
  • Minimum Straight Pipe Dia.s: 5″ Upstream / 2.5″ Downstream: Ensure proper flow conditions with the recommended pipe diameters.

Choose the Great Plains Industries TM Series Flow Meter for unparalleled accuracy, durability, and versatility in water flow measurement

Additional information

Weight 5 lbs
Dimensions 10 × 6 × 6 in
Connection Type

Spigot

Materials

PVC

Flow range

10 – 100 GPM

Piping Connection Size

1.5"

Manufacturer Part Number

TM150

Max Pressure (PSI)

225 psi
