Fleck 2850 1.5″” Control Valve with NXT Controller

$2,100.00

SKU: 2850NXTTCFC2460/10338/12777/60320-12/13640/DS-US-4/13748 Category:

Description

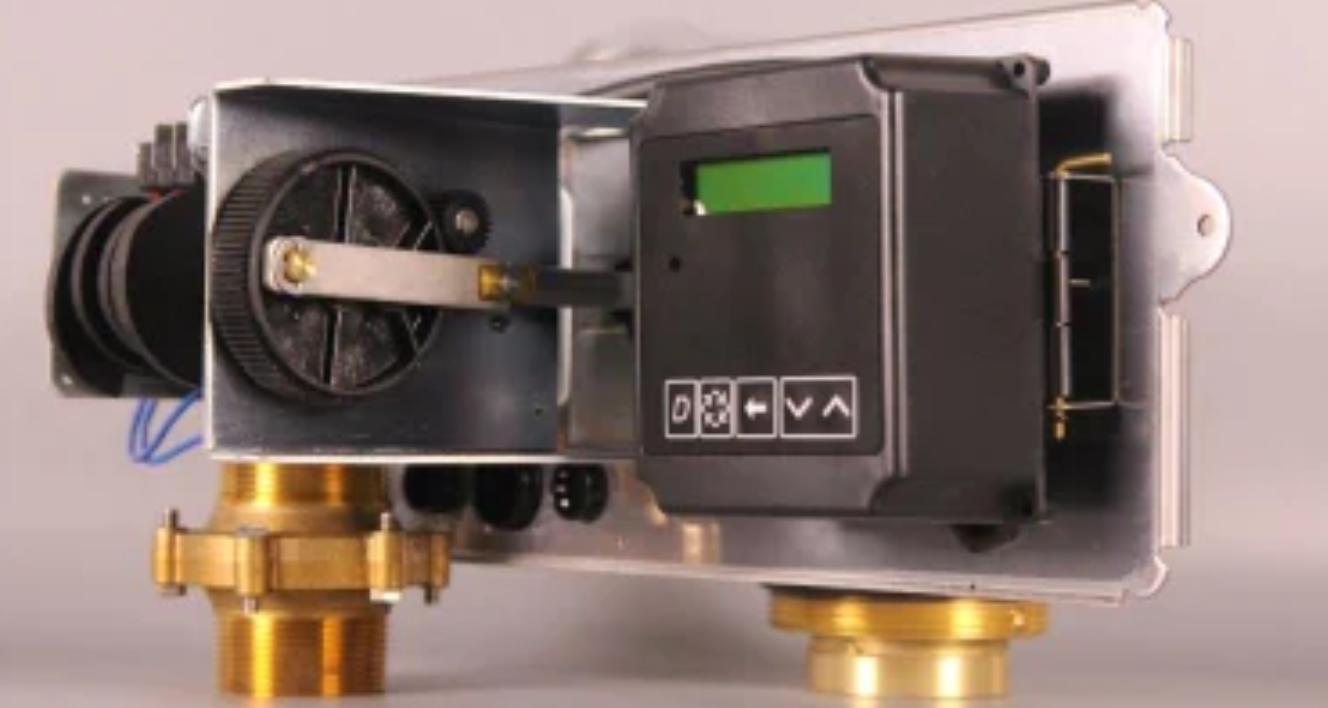

Fleck 2850 Control Valve with NXT2 Controller

Product Highlights:

  • Fully adjustable, 5-cycle metered water softener
  • Time-tested hydraulically balanced piston, seal, and spacer design
  • Solidly constructed, lead-free brass valve body for superior strength and durability
  • Backwash capacity handles tanks up to 30″ diameter
  • Perfect for light/heavy commercial installations
  • Consistent brining regardless of salt levels with timed brine refills
  • On-demand metered control

Key Features:

  • Perfect for light/heavy commercial installations
  • Time-tested hydraulically balanced piston, seal, and spacer design to pilot service flow
  • 1 1/2 inch top mount lead-free brass valve body for superior strength and durability
  • On-demand metered control

Included in the Fleck 2850 Metered System:

  • High capacity resin
  • 1 1/2 inch connections
  • Commercial distributor for proper water flow
  • Fleck 2850 on-demand high flow control valve
  • 2” control valve made of lead-free brass for superior strength and durability.
  • Continuous service flow rate of 95 GPM with a backwash rate of 105 GPM.
  • Multiple controller options available, including networking capabilities for versatility.
  • No hard water bypass option.
  • Versatile top or side mount options.
  • Ideal for commercial, industrial, and hot water applications.

NXT Owner’s Manual

Additional information

Weight 25 lbs
Dimensions 24 × 24 × 20 in
Inlet Connection

2" FNPT

Outlet Connection

2" FNPT

Backwash port connection

2" FNPT

Supply Voltage

120 VAC

Supply Frequency

60 Hz
