Codeline 80S45 Housing Replacement Parts – Non Coded

$50.00
$115.00
$40.00
$62.70
$34.65
$135.00
$112.00
$32.17
$21.00
$35.25
$6.00
$205.00
SKU: 80S45-Non-Coded Category:

Description

On this page you will find all available replacement parts for the 80S45 non coded model vessels.

Codeline 80S45 Specifications (Non Coded Models)


Codeline 80S45 Data Sheet

Codline 80S45 Adapter List

Codeline 80S45 Drawing

Codeline 80S45 User Guide

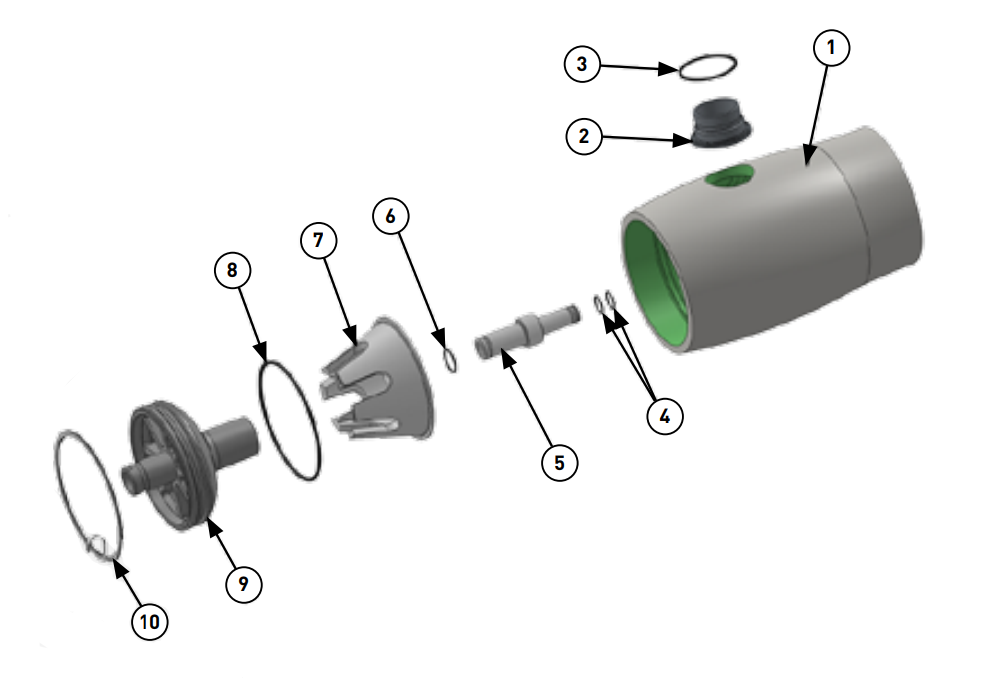

Codeline 80S45 Exploded View & Details (Non Coded Models)


A Generic View For Visual Reference Only

Parts Table



Reference Description Part Number
1 Shell N/A
2 F / C Port CF3M
3 F / C Port Seal N/A
4 PWT Seal N/A
5 Adapter N/A
6 Adapter Seal 52245
7 Thrust Cone 97014
8 Head Seal 96000
9 Elliptical Head Sub Assembly 96248
10 Retaining Ring 47336
11* Saddle 52169
12* Strap Assembly 45042
13* Strap Screw 46265

* Not shown in the exploded view
